The hidden cost of substandard lamination quality hits hard when microscopic deviations in material properties cause catastrophic efficiency drops in motors, generators, and transformers. Procurement and engineering teams face massive variability in raw material batches. Relying solely on supplier-provided mill certificates without a rigorous internal verification process exposes manufacturers to high scrap rates, poor stacking factors, and degraded magnetic performance. Establishing a standardized, verifiable inspection framework—covering magnetic properties, dimensional accuracy, and coating integrity—is critical for qualifying suppliers and ensuring downstream product reliability. You need a hardline approach to incoming quality control to protect your production lines from out-of-spec coils.
Magnetic Validation is Non-Negotiable: Core loss verification via standardized methods (e.g., ASTM A343) must be the primary gatekeeping metric for electrical steel procurement, directly dictating final equipment efficiency.
Dimensional Flaws Compound Downstream: Flatness deviations, poor parallelism, and excessive burr heights exponentially degrade the lamination stacking factor, leading to localized overheating and mechanical stress.
Coating Integrity Prevents Core Failure: Surface insulation resistance must be empirically tested to prevent eddy current bridging between laminations.
Data-Driven Supplier Qualification: Transitioning from reactive quality control to proactive, metrology-backed supplier audits reduces long-term manufacturing risks.
Table of Contents
Defining what constitutes acceptable material requires aligning raw material specifications with specific application requirements. The magnetic and physical demands placed on EV traction motors differ drastically from those of stationary distribution transformers. Traction motors require high-frequency switching capabilities and exceptional mechanical strength to withstand rotor centrifugal forces. Transformers prioritize ultra-low core loss at standard power frequencies. Establishing clear success criteria for procurement ensures that incoming materials meet the exact functional demands of the end product. You cannot treat all incoming coils the same; the inspection criteria must match the final application.
The financial impact of out-of-spec materials extends far beyond the initial purchase order. Poor material quality accelerates stamping die wear, forcing premature tool maintenance and halting production lines. In assembled cores, dimensional inconsistencies and degraded magnetic properties lead to elevated core temperatures. This thermal stress compromises insulation systems and prevents final products from meeting stringent energy efficiency mandates, such as IE4 and IE5 standards. Manufacturers risk severe penalties, product recalls, and reputational damage when efficiency targets are missed. Every micrometer of deviation in thickness or flatness translates directly into lost efficiency and increased scrap on the shop floor.
Evaluating mill certificates requires a critical eye. Supplier documentation often presents batch averages that mask significant coil-to-coil or intra-coil variations. Engineering teams must verify these documents by comparing reported averages against actual physical test data. Identifying discrepancies between the mill certificate and internal laboratory results is the first step in holding suppliers accountable and preventing defective material from entering the production stream. Never accept a mill certificate at face value without running your own validation checks on sample strips.
When you integrate Electrical Steel into high-performance applications, the margin for error is zero. A batch that looks fine on paper might have severe edge wave or inconsistent coating thickness that only reveals itself during the stamping process. By the time the material jams the press or fails a final motor dyno test, the financial damage is already done. Implementing a strict incoming inspection protocol stops these issues at the loading dock.
Establishing a sequential inspection hierarchy is vital for efficient quality control. Core loss testing must serve as the primary filter before executing downstream dimensional and surface coating tests. If a coil fails to meet the required magnetic efficiency standards, its physical dimensions and coating integrity become irrelevant. Rejecting magnetically deficient material immediately saves time, labor, and testing resources that would otherwise be wasted on comprehensive geometric inspections. There is no point in measuring the burr height or flatness of a coil that will ultimately fail the core loss requirements.
Protocols for cross-referencing physical test results must be strictly enforced. Laboratory test values must be compared directly against nominal design limits and the original purchase order specifications. Relying on supplier-declared averages introduces unacceptable risk. By treating core loss as the ultimate gatekeeper, manufacturers ensure that only material capable of meeting final efficiency targets proceeds to the stamping and assembly phases. This pass/fail gatekeeping prevents bad steel from absorbing expensive machining and assembly labor.
Implementing this protocol requires discipline on the floor. Receiving teams must isolate incoming coils in a quarantine area until the magnetic testing lab clears the samples. If the core loss exceeds the maximum allowable watts per kilogram, the entire master coil gets flagged for return or downgrade. This strict adherence to sequential testing prevents the accidental release of substandard material into the active inventory.
The Epstein Frame test, governed by ASTM A343, remains the industry-standard method for measuring the magnetic properties of flat-rolled materials at standard power frequencies of 50 Hz and 60 Hz. This rigorous laboratory procedure evaluates core loss, magnetic permeability, and exciting power. Sample preparation is highly controlled. Strips must be sheared to exact dimensions, and their orientation relative to the rolling direction must be carefully managed to account for magnetic anisotropy. Stress-relief annealing is often required for sheared samples to eliminate residual mechanical stresses that artificially inflate core loss readings.
Executing a proper Epstein Frame test involves several critical steps to ensure accurate data collection:
Shear the test strips to exactly 30 mm wide and at least 280 mm long, ensuring clean edges without excessive burrs.
Sort the strips based on their orientation to the rolling direction, typically mixing longitudinal and transverse cuts for non-oriented grades.
Perform a stress-relief anneal in a controlled atmosphere furnace to remove mechanical stresses introduced during the shearing process.
Weigh the annealed strips accurately to determine the active mass for the core loss calculation.
Load the strips into the four legs of the Epstein frame, ensuring double-lapped joints at the corners to minimize air gap reluctance.
Apply the specified alternating current to reach the target magnetic flux density (e.g., 1.5 Tesla) and record the wattmeter readings.
While the Epstein Frame provides the baseline for laboratory accuracy, Single Sheet Testing (SST) offers distinct advantages for inline production environments. SST allows for rapid evaluation of larger material samples without the extensive shearing and annealing required by the Epstein method. This makes SST highly scalable and significantly faster for batch validation. You can pull a large square sample directly from the slitting line and get a core loss reading in minutes rather than waiting hours for an annealed Epstein result.
Evaluation Dimension | Epstein Frame (ASTM A343) | Single Sheet Testing (SST) |
|---|---|---|
Accuracy | High (Laboratory standard) | Moderate to High (Requires calibration against Epstein) |
Speed | Slow (Extensive sample prep) | Fast (Minimal sample prep) |
Scalability | Low (Destructive, small samples) | High (Suitable for inline quality control) |
Sample Size | 30mm x 280mm strips | Typically 500mm x 500mm sheets |
Adapting core loss inspection for modern applications requires moving beyond standard power frequency evaluations. High-frequency testing is now mandatory for EV applications, where switching environments operate between 400 Hz and 1 kHz or higher. Inspecting material at these elevated frequencies reveals eddy current losses and hysteresis behaviors that remain hidden during 50 Hz testing, ensuring the material can handle the rapid magnetic flux reversals typical in electric vehicle traction motors. Standard testing simply does not stress the material the way a high-speed inverter will.
Measuring flatness tolerance according to ASME Y14.5 standards requires meticulous physical setups. Precision horizontal flat surfaces, such as granite surface plates, must be calibrated regularly. Prior to measurement, all micro-debris and oil films must be removed from both the surface plate and the material sample to prevent false readings. Metrology guidelines dictate a high point acquisition density across the sheet surface. Capturing a dense array of spatial points allows quality teams to construct an accurate, high-resolution flatness profile.
Applying unit-based flatness constraints is essential for preventing localized buckling. Tolerances must be measured per unit area or per unit length, such as allowable deviation per meter. Utilizing block squares, dial test indicators, and modern 3D optical metrology provides the precise topographical mapping needed to verify these constraints. Specific rolling mill defects manifest clearly in coils and must be identified before stamping.
Edge Wave: Wavy deformations along the strip edges caused by over-rolling the material edges relative to the center. This causes the strip to wander in the stamping press.
Center Buckle: Ripples in the center of the strip resulting from over-rolling the center relative to the edges. This prevents laminations from stacking flat.
Camber: Curvature along the longitudinal edge of the strip, which severely disrupts continuous stamping processes and die alignment.

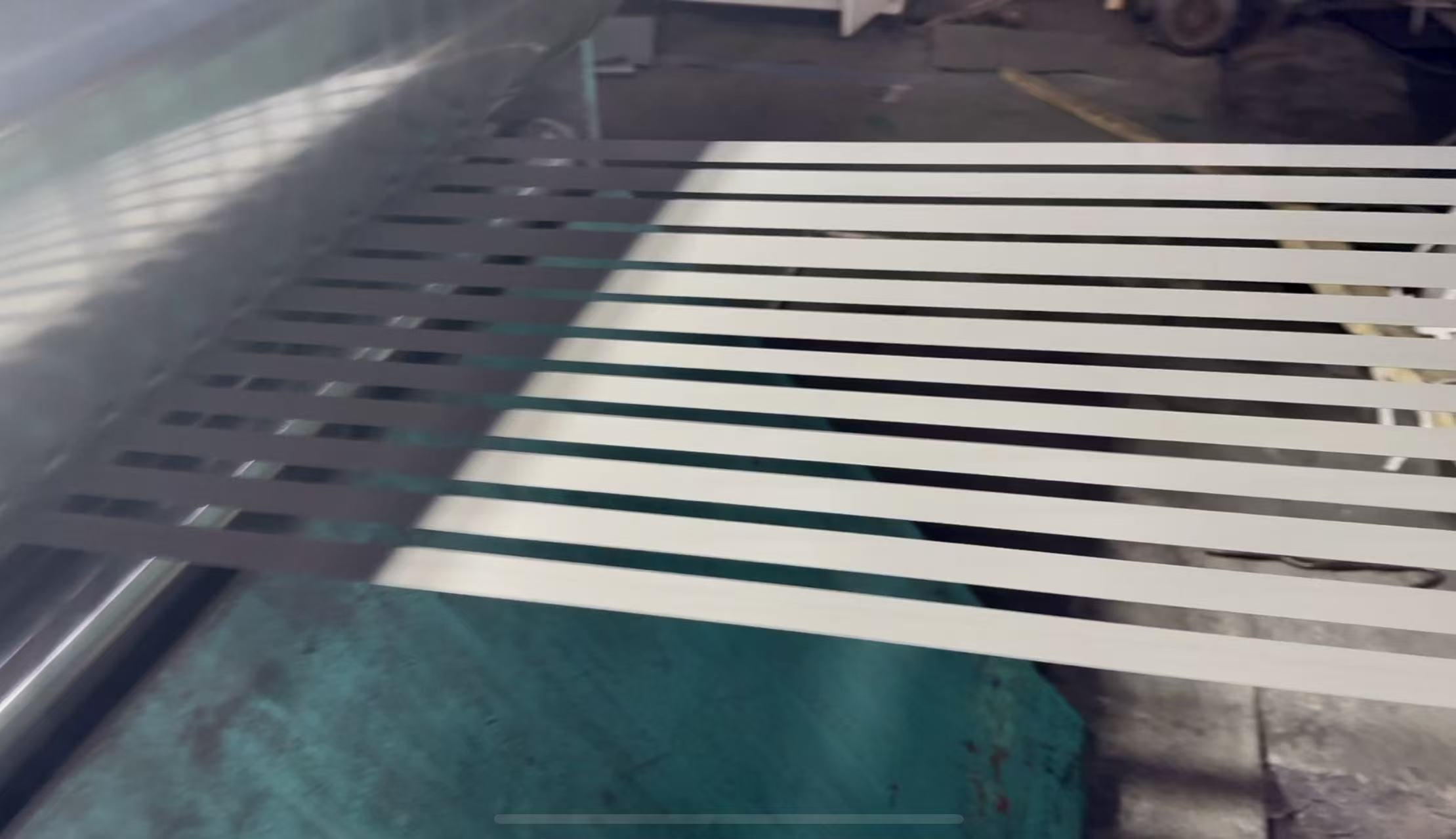

Deviation from squareness during slitting or shearing introduces structural asymmetry in the assembled magnetic core. Parallelism and perpendicularity of slit strips must be strictly controlled. Using dial indicators and precision squares helps measure and control edge parallelism, ensuring that laminations stack uniformly. Furthermore, longitudinal and transverse thickness variations, known as crown, directly impact the volumetric efficiency of the magnetic core. Measuring these thickness tolerances accurately is required to calculate and maintain the target stacking factor. If the crown is too high, the core will build up unevenly, causing mechanical instability and loose laminations.
Understanding the mechanics of burr formation is necessary for extending tool life and maintaining lamination quality. Burrs are generated during the slitting or stamping process due to a combination of improper die clearance, tool wear, and variations in material hardness. As the punch penetrates the material, plastic deformation occurs, eventually leading to fracture. When clearance is too large or tools are dull, the material tears rather than shears, leaving a pronounced metallic protrusion along the cut edge. This protrusion acts like a knife, ready to slice through the insulation coating of the adjacent lamination.
Transitioning from basic micrometers to advanced inspection tools improves measurement repeatability. Optical comparators and tactile profilometers provide high-resolution burr measurement, eliminating the subjective errors associated with manual gauge inspections. A micrometer can easily crush a fine burr, giving a falsely low reading. Optical systems measure the true peak height without contacting the fragile edge.
Material Thickness (mm) | Maximum Allowable Burr Height (mm) | Inspection Method |
|---|---|---|
0.20 | 0.015 | Optical Profilometer |
0.35 | 0.025 | Optical Comparator / Profilometer |
0.50 | 0.035 | Tactile Profilometer |
0.65 | 0.045 | Micrometer / Profilometer |
Establishing strict threshold limits based on lamination thickness is a critical risk mitigation strategy. Excessive burrs cause interlaminar short circuits by piercing the insulation coating of adjacent laminations. This bridging degrades the stacking factor, accelerates insulation breakdown, and creates localized hot spots that can lead to catastrophic core failure. If you allow burrs to exceed 10% of the material thickness, you are practically guaranteeing a drop in motor efficiency and a spike in operating temperature.
Inspecting coating thickness and uniformity ensures that organic, inorganic, and semi-organic coatings (such as C-3, C-4, C-5, and C-6) are consistently applied across the entire coil width. Uneven coating application leads to variations in the stacking factor and compromises the interlaminar resistance. The Franklin Test for Surface Insulation Resistance, governed by ASTM A717, is the standard method for evaluating coating integrity. This test measures the electrical resistance of the insulating film under standardized pressure and temperature, simulating the compressive forces the laminations will experience inside an assembled core.
The Franklin test involves placing a set of ten electrical contacts against the coated surface under a specific hydraulic pressure. A voltage is applied, and the total current flowing through the coating is measured. This provides a quantifiable resistance value, usually expressed in ohms-cm² per lamination. If the coating is too thin or porous, the current spikes, indicating a failure in the insulation barrier. You must run this test on multiple sections of the coil, as coating thickness can vary significantly from the edge to the center.
Adhesion and curing verification are equally important. The coating must withstand severe mechanical stress during high-speed stamping and winding operations without flaking or powdering. Flaking coating introduces debris into the stamping die, accelerating tool wear and leaving bare metal exposed to eddy current bridging. Tape tests and bend tests are routinely employed to verify that the coating is fully cured and securely bonded to the steel substrate. If the coating turns to dust during a simple 90-degree bend test, it will never survive a progressive stamping die.
Balancing the capital expenditure of setting up an internal metrology lab against the recurring costs of outsourced testing requires careful consideration. In-house testing, including Epstein frames and optical profilometers, demands significant upfront investment and specialized personnel. However, it provides immediate feedback and tighter control over incoming material. Third-party metallurgical labs offer accredited validation without the capital burden, but introduce lead times that can bottleneck production schedules. Waiting a week for a third-party lab report means holding inventory on the floor, which ties up capital and space.
Developing a robust sampling plan determines the statistical frequency of inspection. Quality teams must decide whether to test per coil, per master batch, or per shift. The goal is to maintain high confidence in material quality without creating unnecessary production delays. A common approach is to test the head and tail of every master coil for core loss and coating resistance, while performing dimensional checks on every slit pup coil.
During supplier audits, specific red flags indicate poor process controls at the mill level. Inconsistent annealing practices, deficient tension leveling, or a lack of inline flatness monitoring suggest that the supplier cannot reliably produce material to stringent specifications. If a supplier cannot produce statistical process control (SPC) charts for their coating lines or rolling mills, you cannot trust their mill certificates. You must demand transparency and raw data from your steel service centers to ensure they are actually controlling their processes.
Audit your current incoming inspection protocols immediately to identify gaps in your magnetic and dimensional quality control processes.
Invest in appropriate metrology equipment, such as Franklin testers and optical profilometers, to bring critical validation capabilities in-house and reduce testing lead times.
Establish strict Service Level Agreements (SLAs) regarding burr height maximums and core loss limits with your steel service centers to ensure accountability.
Implement a quarantine system for all incoming coils until internal laboratory testing confirms compliance with purchase order specifications.

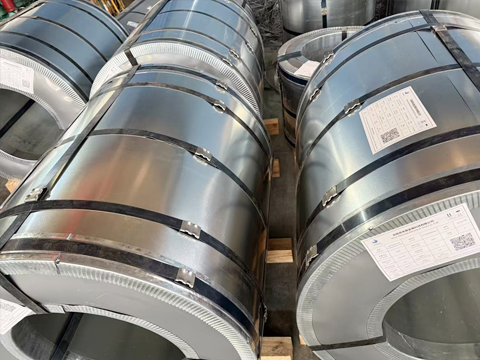

With more than 20 years of electrical steel market experience and over 16 years of manufacturing expertise, SHERAXIN supplies CRGO and CRNGO coils, strips, and sheets for transformer cores and electrical steel lamination applications. Supported by customized production capabilities, laboratory testing resources, and an extensive international supply network, the company helps customers achieve consistent magnetic performance, dimensional accuracy, and dependable material quality.
A: Acceptable core loss depends entirely on the application and material grade. High-efficiency transformers require ultra-low core loss (often below 0.8 W/kg at 1.5T/50Hz for oriented grades), while standard motors may tolerate higher losses. Always refer to specific engineering designs and ASTM standards for exact limits.
A: Flatness is measured by placing a sample on a calibrated precision horizontal surface plate. Metrologists use dial test indicators, block squares, or 3D optical scanners to measure the maximum deviation (height) of the sheet from the flat surface, checking for edge wave or center buckle.
A: Burr height allowances are typically dictated by the lamination thickness. A general industry guideline restricts maximum burr height to less than 10% of the total material thickness to prevent interlaminar shorting and maintain a high stacking factor.
A: The Franklin test (ASTM A717) measures the surface insulation resistance of the applied coating. It verifies that the coating can effectively prevent eddy currents from bridging between stacked laminations under operational pressure and temperature.
A: Excessive coating thickness reduces the stacking factor by occupying space that should be filled by magnetic steel. This lowers the volumetric magnetic efficiency of the core. Conversely, too thin a coating risks electrical shorting between laminations.
A: The Epstein Frame is a rigorous, destructive laboratory standard requiring specific sample shearing and annealing. Single Sheet Testing (SST) is faster, requires minimal sample preparation, and is better suited for rapid, inline production quality control.
A: Inconsistent thickness (crown) prevents laminations from stacking tightly and uniformly. This reduces the stacking factor, decreases the active magnetic material in the core, and ultimately lowers the motor's energy efficiency and thermal performance.
